Chipset: Realtek  RTL8762DK

Compatible system: Android 5.0 and above ;iOS 10.0 and above

Flash memory: RAM:192KB+ROM:256KB+128Mb Nor flash

Screen :1.32 inch, 360*360 , TFT ALL TP-OGS

Waterproof level:IP68

APP: Topstep

Bluetooth :BLE5.1

Bluetooth call chip: JL HN333

NFC: Access control

Acceleration sensor  gsensors : SLW SC7A20

Heart rate: V CARE  LC10A


Battery type: Polymer lithium battery

Charging method : Wireless charging

Charging duration : 150min

Endurance : 7 days

PW02 PW02



Product modelPW02
Detailed parameters
Hardware parametersSolution provider APPTopstep
Main control chip CPURealtek  RTL8762DK
Compatible system
Flash Memory
Android 5.0 and above ;iOS 10.0 and above
Flash RAMRAM:192KB+ROM:256KB+128Mb Nor flash
Screen typeTFT
Screen size1.32 inch
Touch screen IC/type360*360
Touch Screen IC/TypeALL TP--OGS
Connection parametersBluetooth callsJL HN333
NFCAccess control
SensorAcceleration sensor gsensorsSLW SC7A20

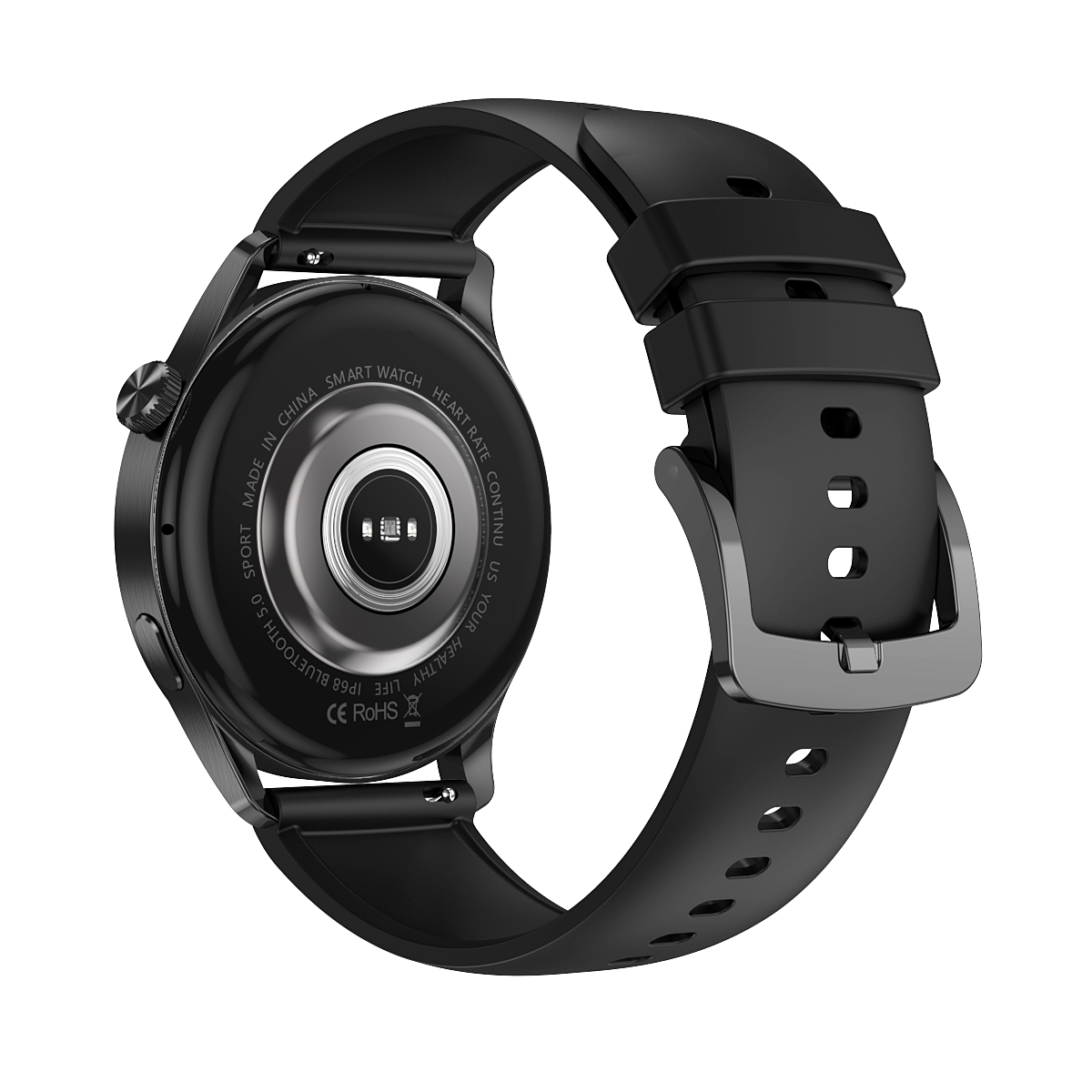

heart rateV CARE  LC10A
Body temperatureNone
BatteryBattery TypePolymer lithium battery
Charging modeWireless charging
APP software functionsportsStep count, calories, distance, movement pattern
healthBlood pressure, heart rate, blood oxygen, sedentary reminder, sleep monitoring, automatic heart rate monitoring, etc.
Smart reminderIncoming call, SMS, email, WeChat、QQ、Facebook、Twitter、WhatsApp、LinkedIn、Instagram、Messenger、Snapchat、Line、Kakao Talk、Viber、Skype、telegram
otherLift the wrist to light the screen, alarm clock reminder, remote control to take photos, find the mobile phone, etc.
Watch Hardware FeaturesMotion dataDistance, calories, steps, real-time heart rate, exercise duration
Sport mode selectionWalking / Running / Mountaineering / Cycling / Basketball / Swimming / Badminton / Football / Elliptical Machine / Yoga / Table Tennis / Skipping Rope / Tennis / Baseball / Rugby / Hula Hoop / Golf / Long Jump / Crunches / Volleyball
otherTime display, wrist lift to brighten the screen, call reminder, SMS reminder, alarm clock reminder, remote control to take pictures, find mobile phone, dial switch, brightness adjustment, language switch, QR code, stopwatch, weather, dial, password lock, Alipay, music, System reset to factory settings, music control, vibration settings, wrist lift duration settings, screen-on duration settings, massive dials, etc.
Other parameterswaterproof levelIP68
Charging time150 minutes
battery life7 days
Standby power consumptionMinimum 70uA
Charger SpecificationsDC 5V
Firmware languageFirmware language of the product is optional (Chinese, English, Spanish, Portuguese, German, Italian, French, Russian, Japanese, Polish, Vietnamese, Korean, Arabic, Hebrew, Thai, Croatian, Turkish, Czech, Dutch, Indian, Malaysian, Finnish, Greek and Romanian). English is the default language from the factory
APP languageEnglish, Chinese Simplified, Chinese Traditional, German, French, Arabic, Czech, Greek, Spanish, Japanese, Persian, Italian, Korean, Dutch, Polish, Portuguese, Russian, Finnish, Swedish, Thai, Hungarian, Slovak, Croatian, Albanian, Turkish, Ukrainian
