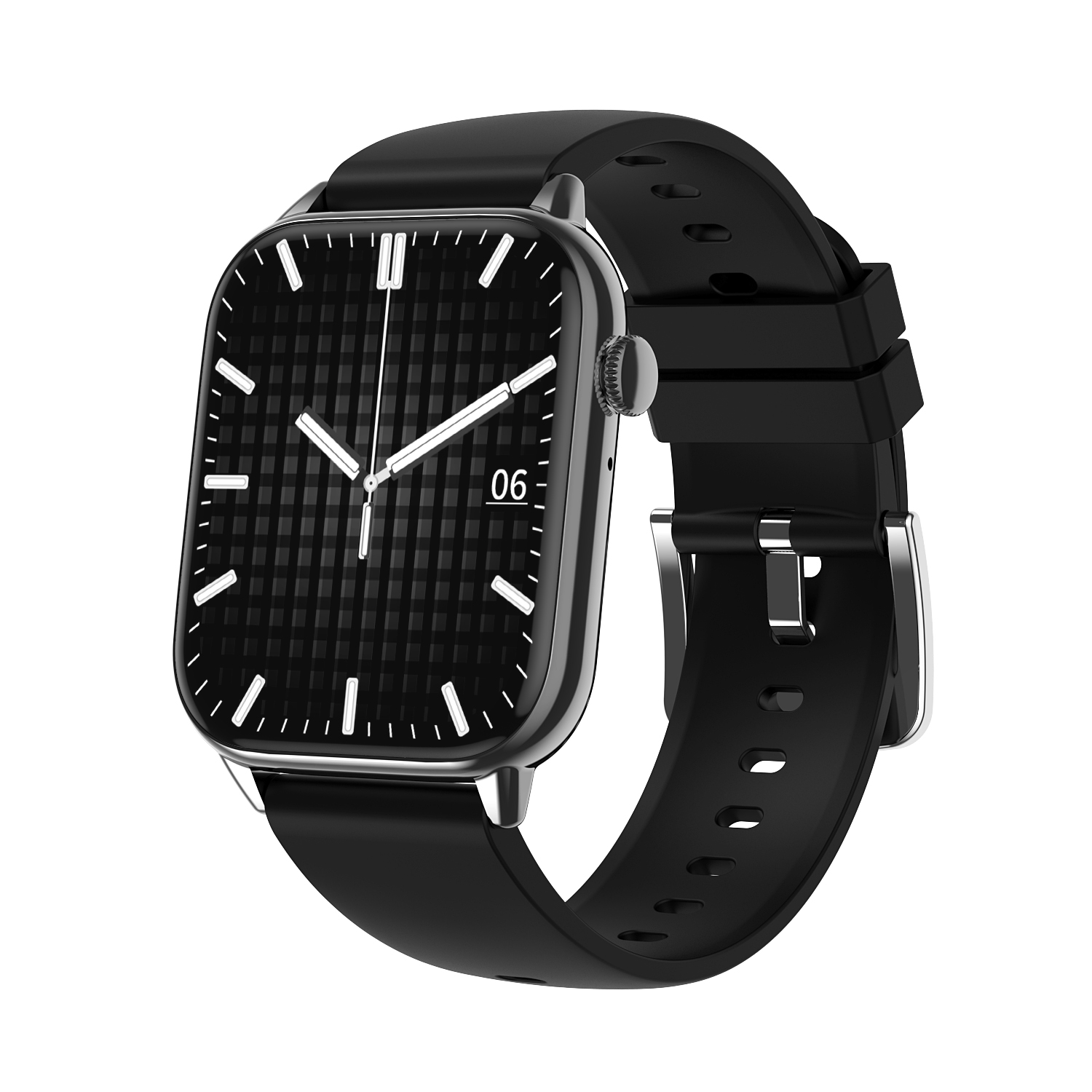

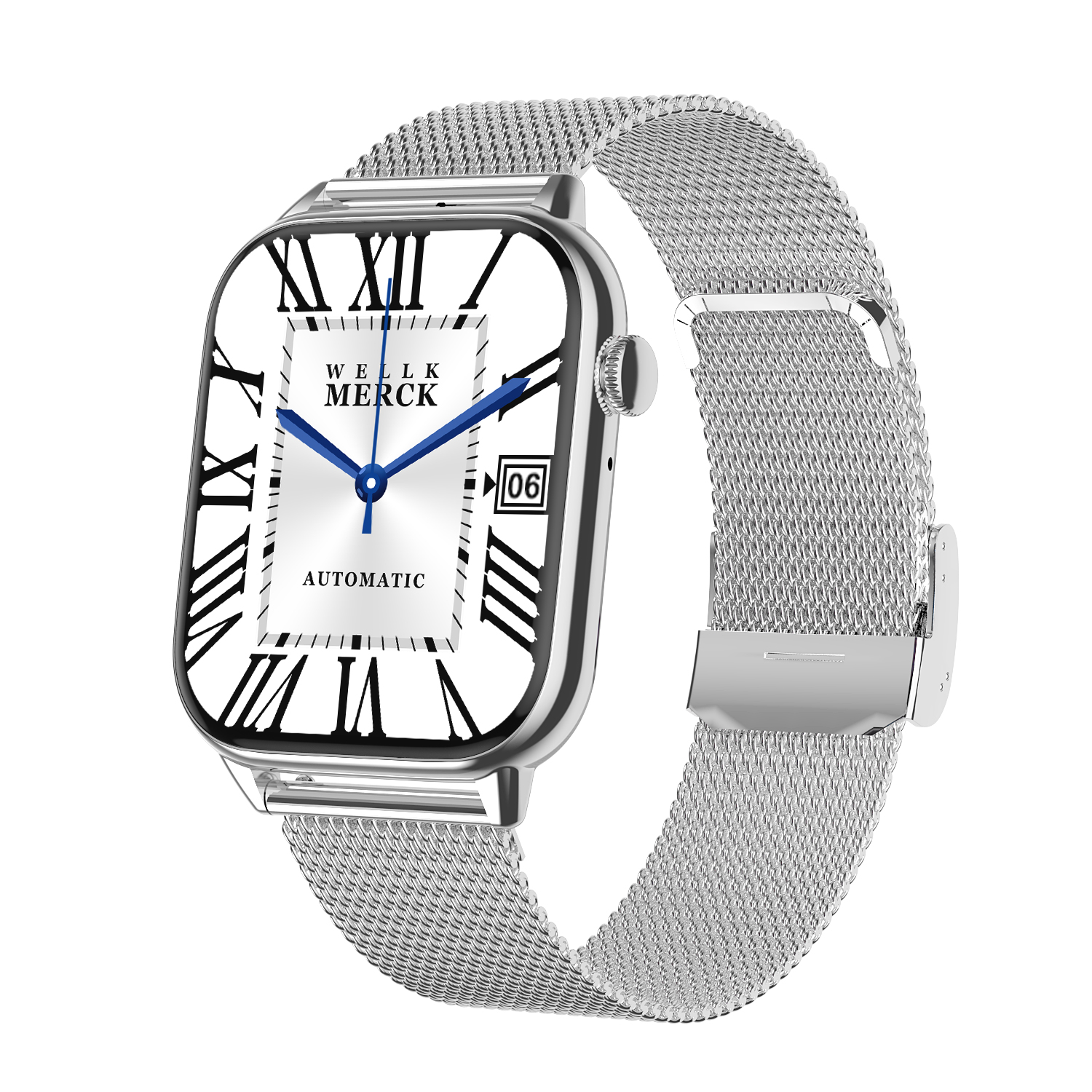

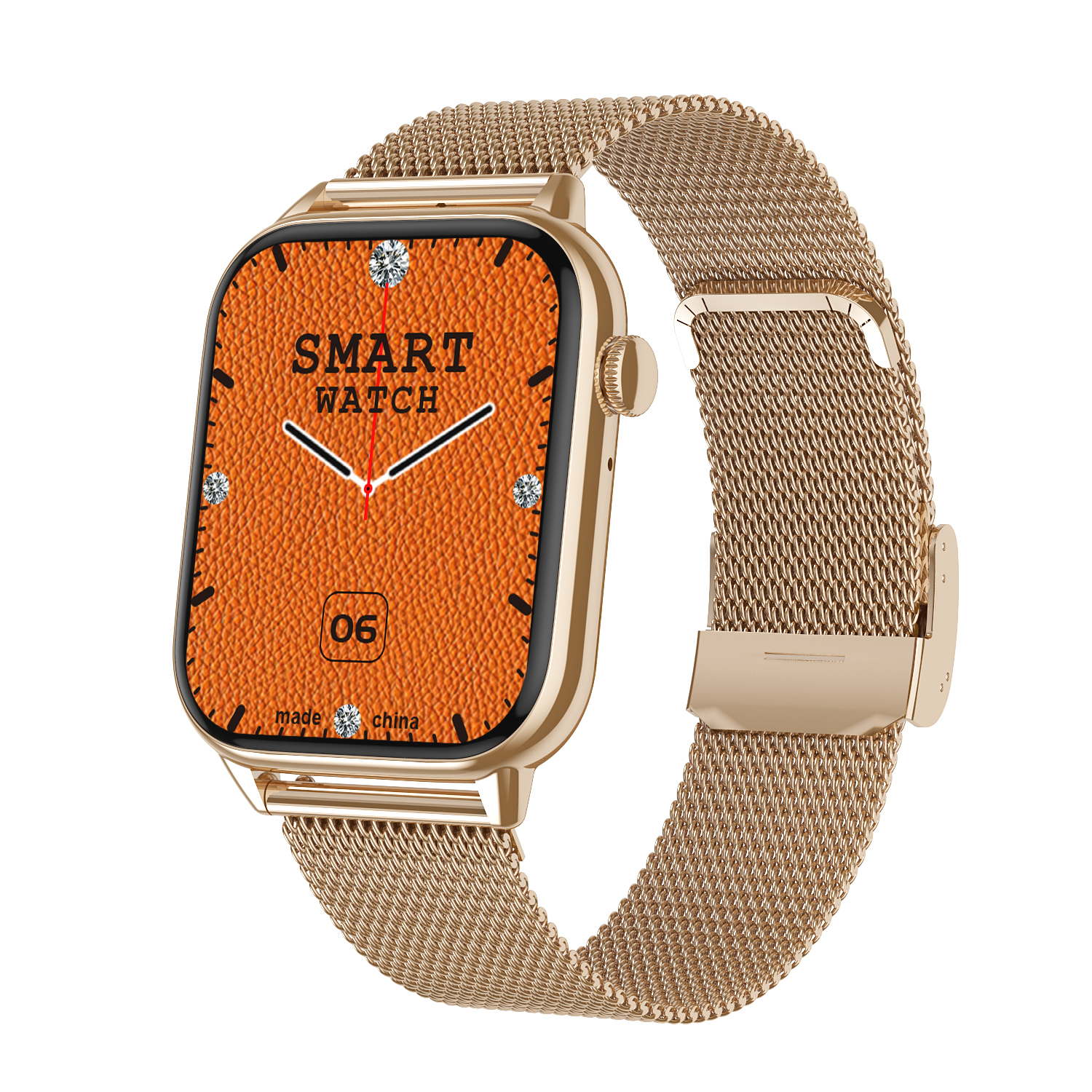

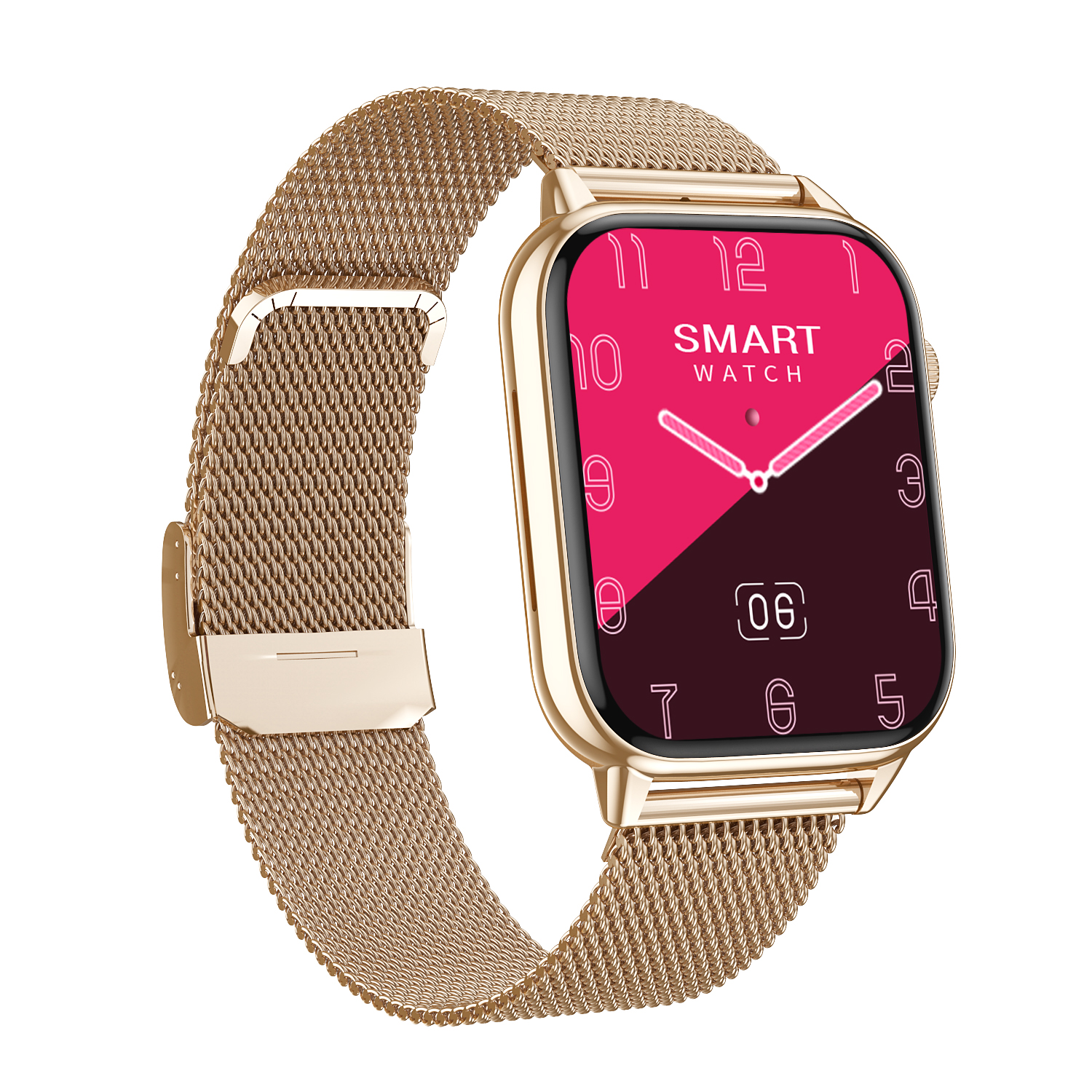

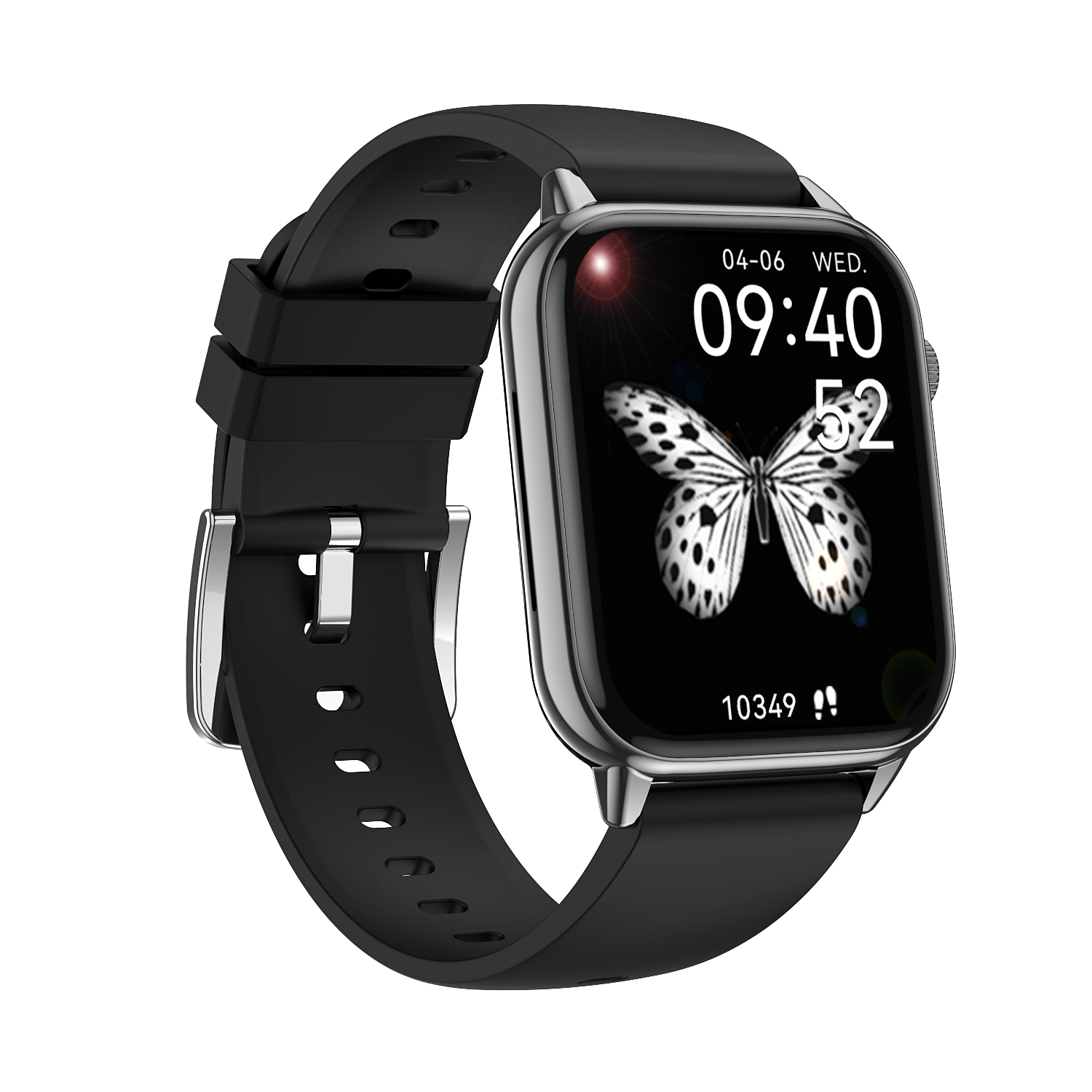

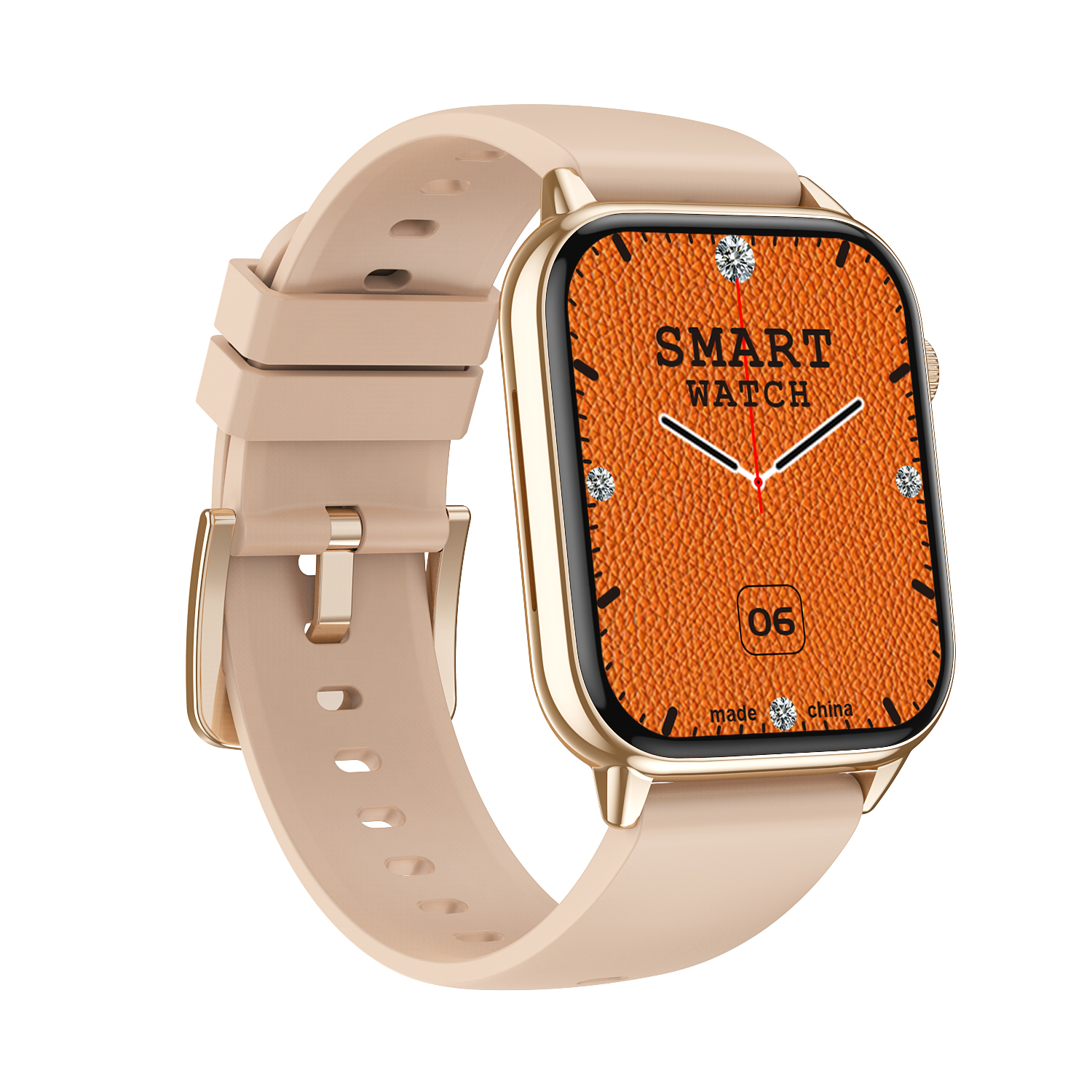

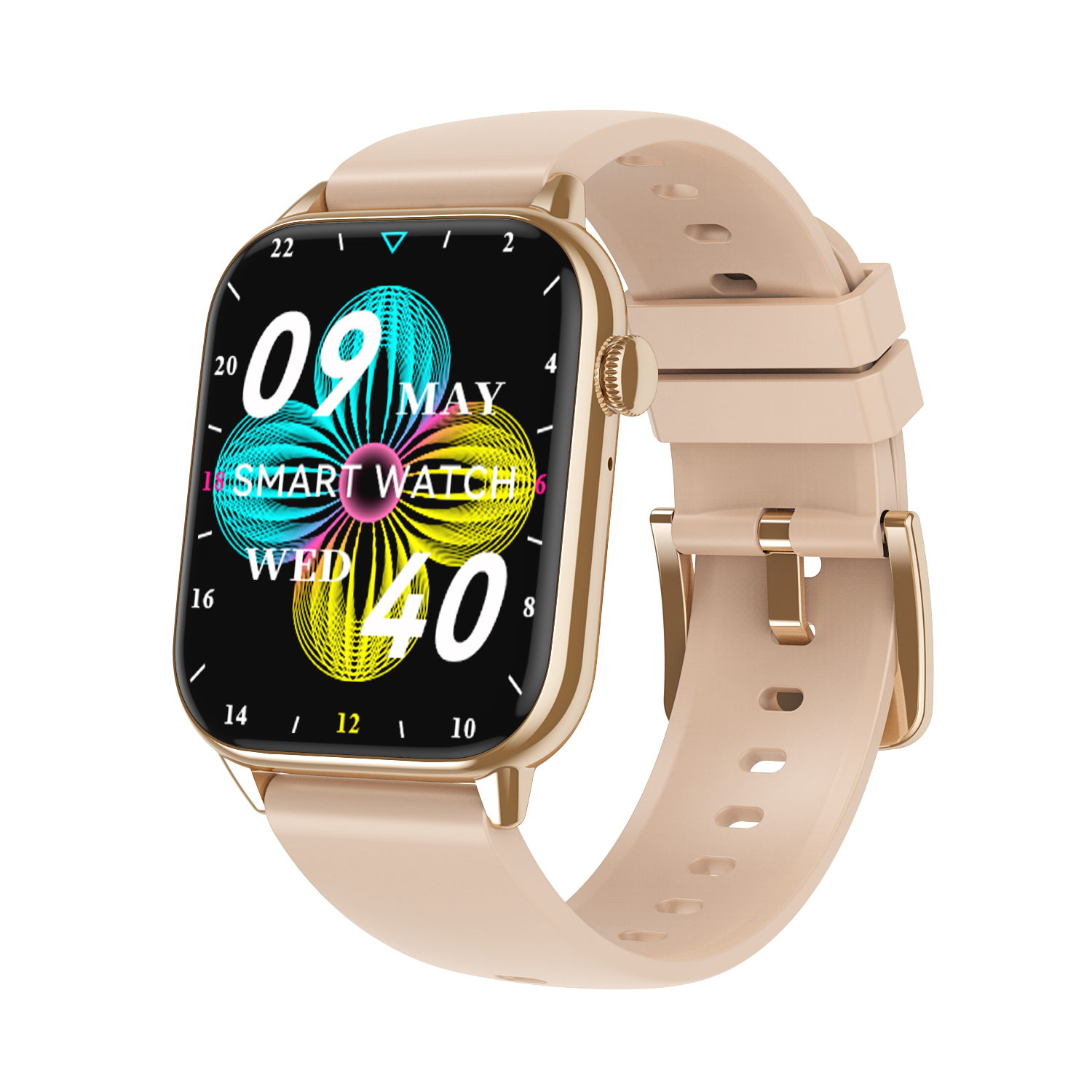

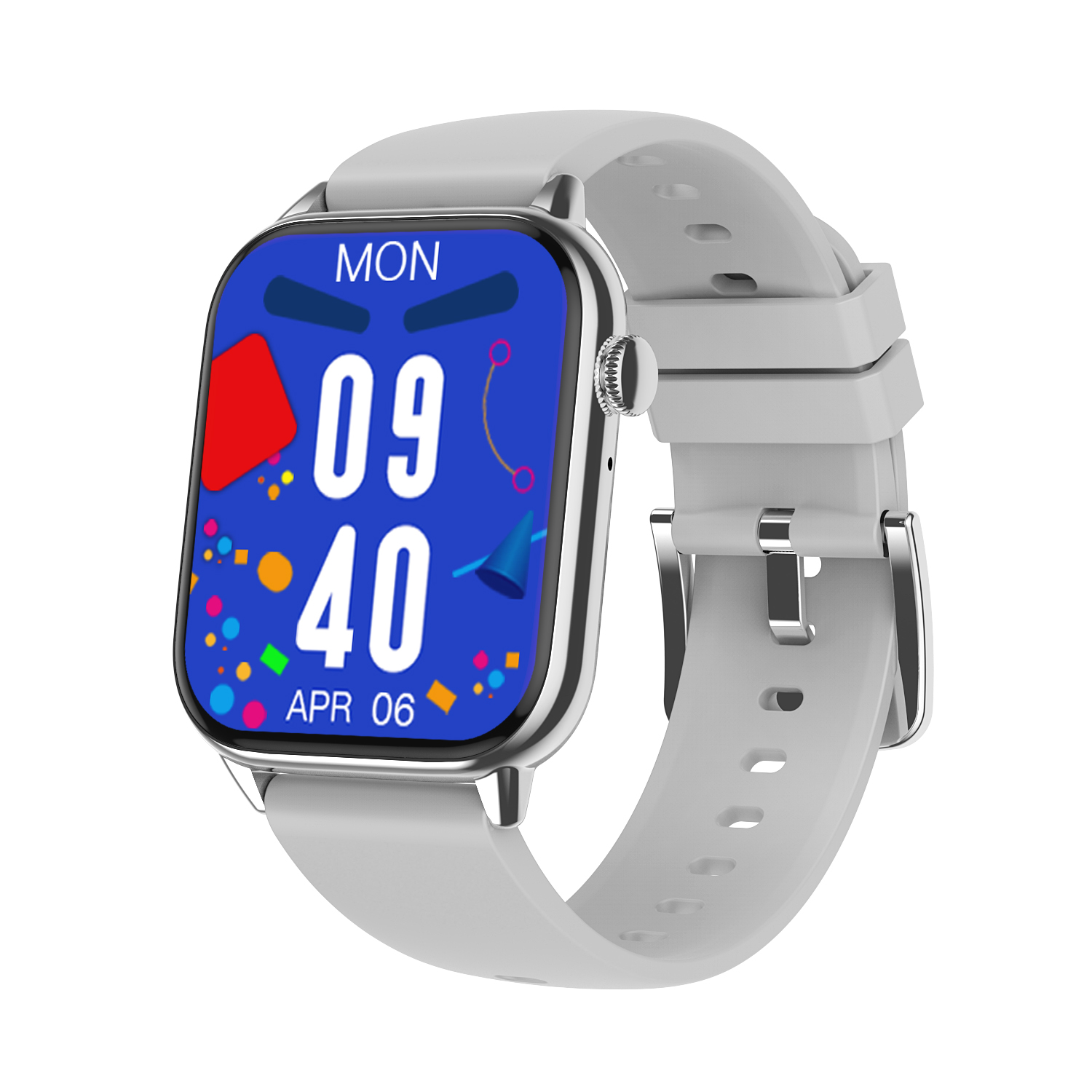

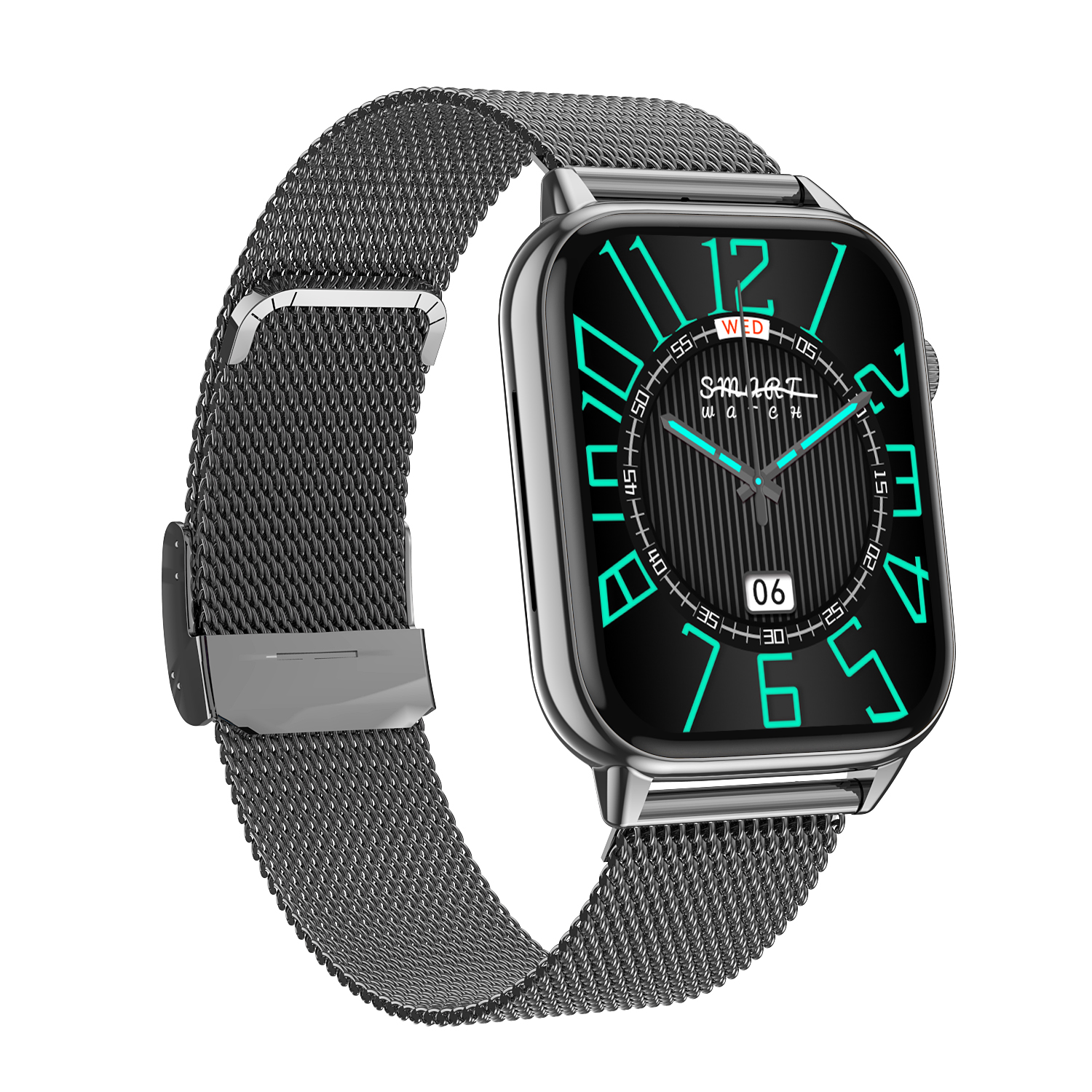

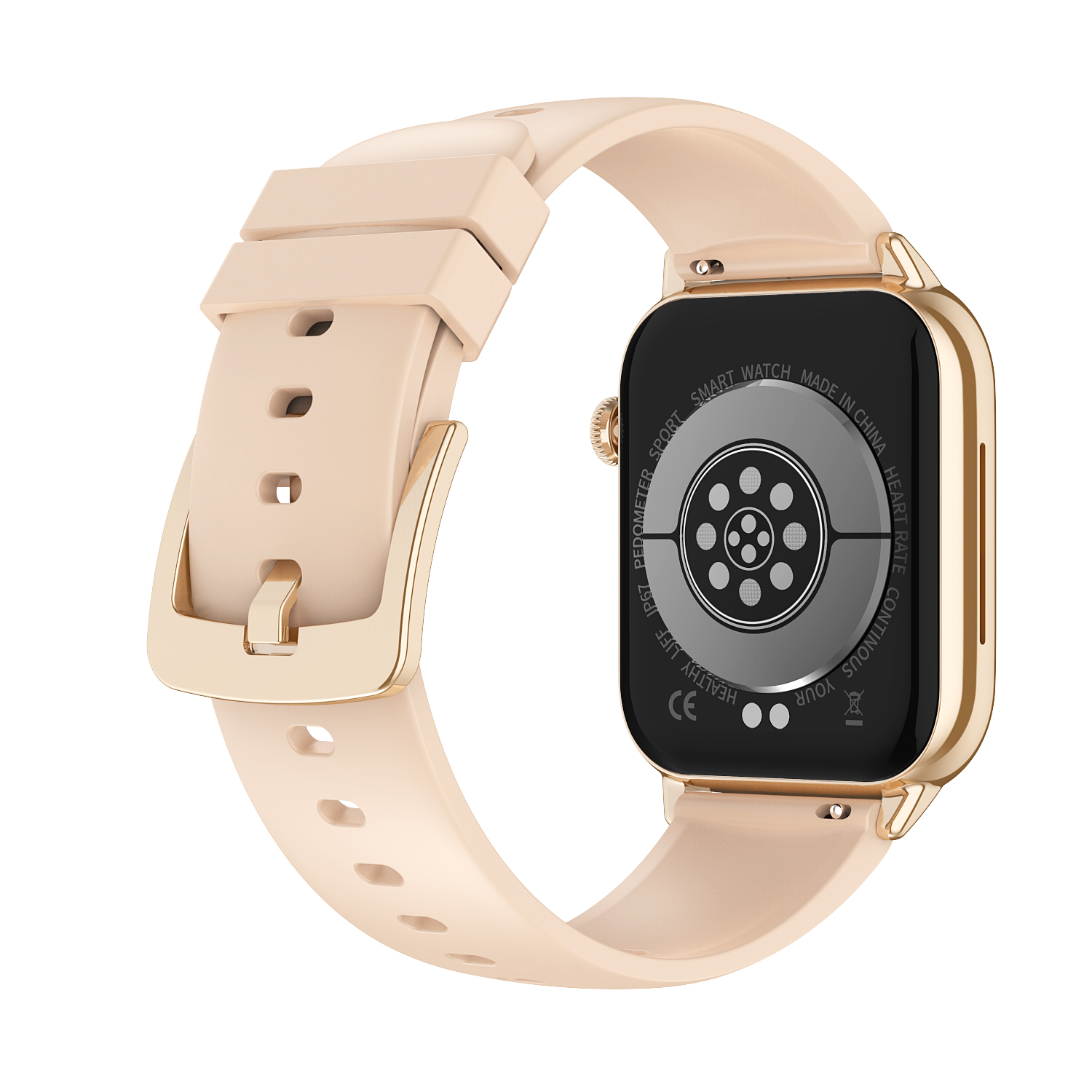

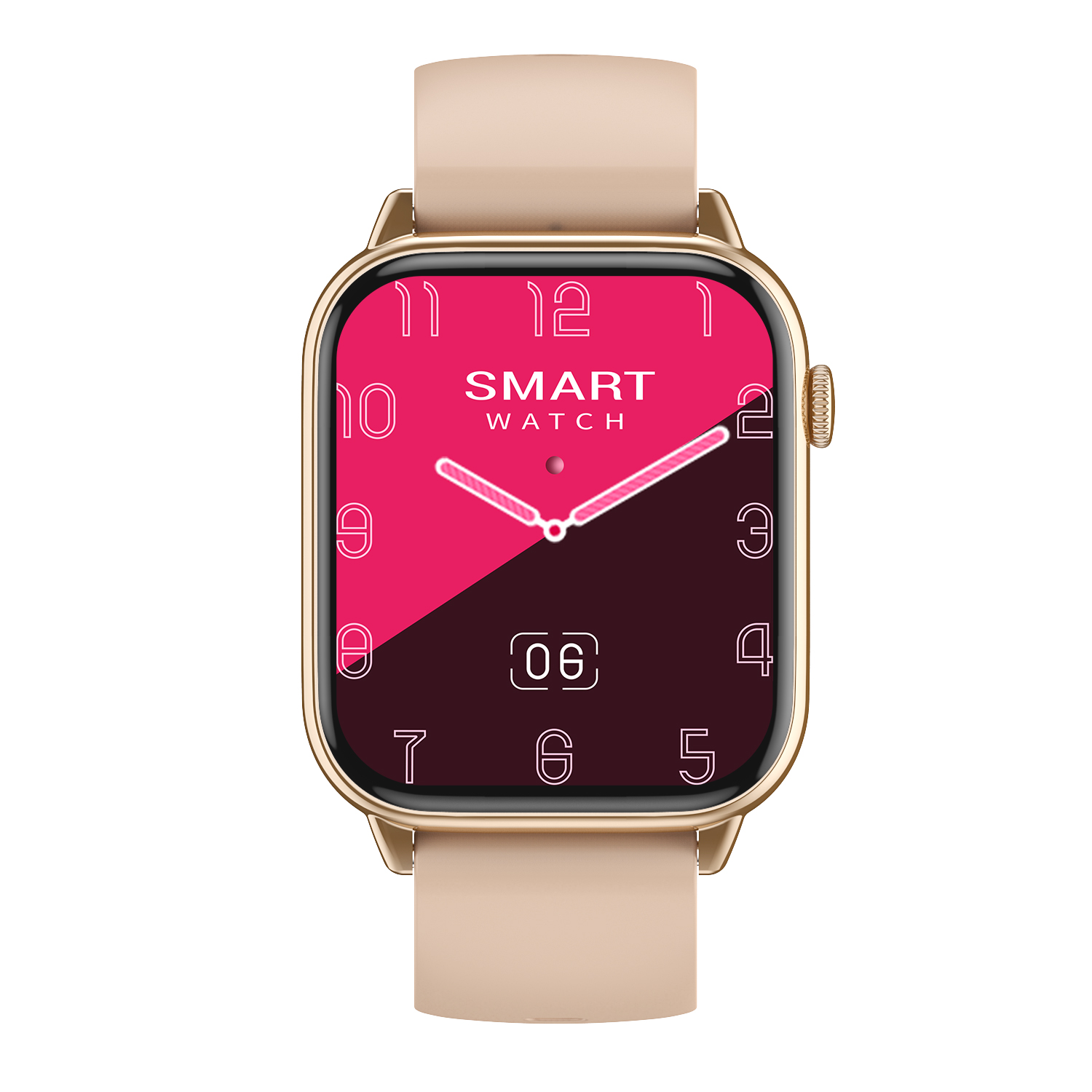

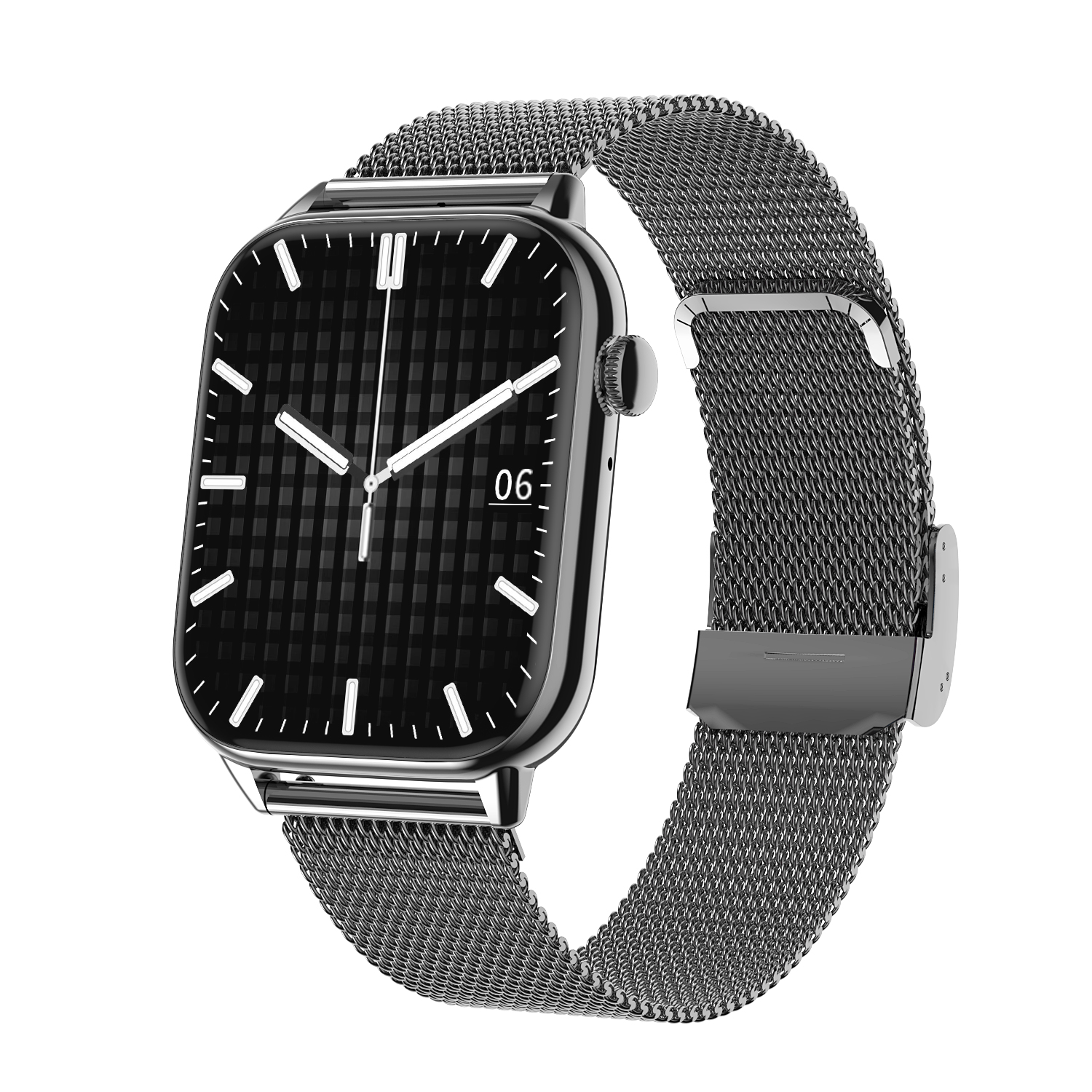

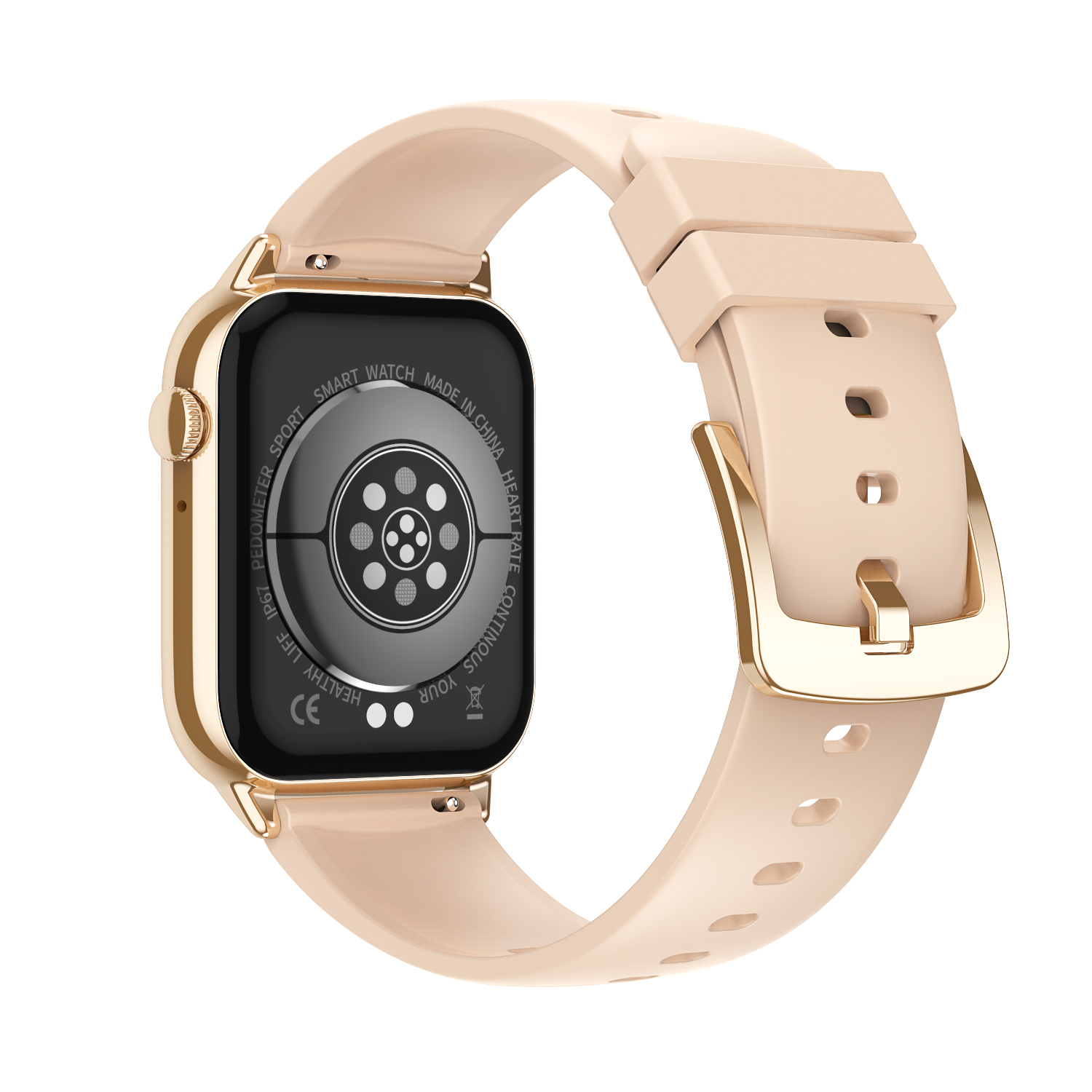

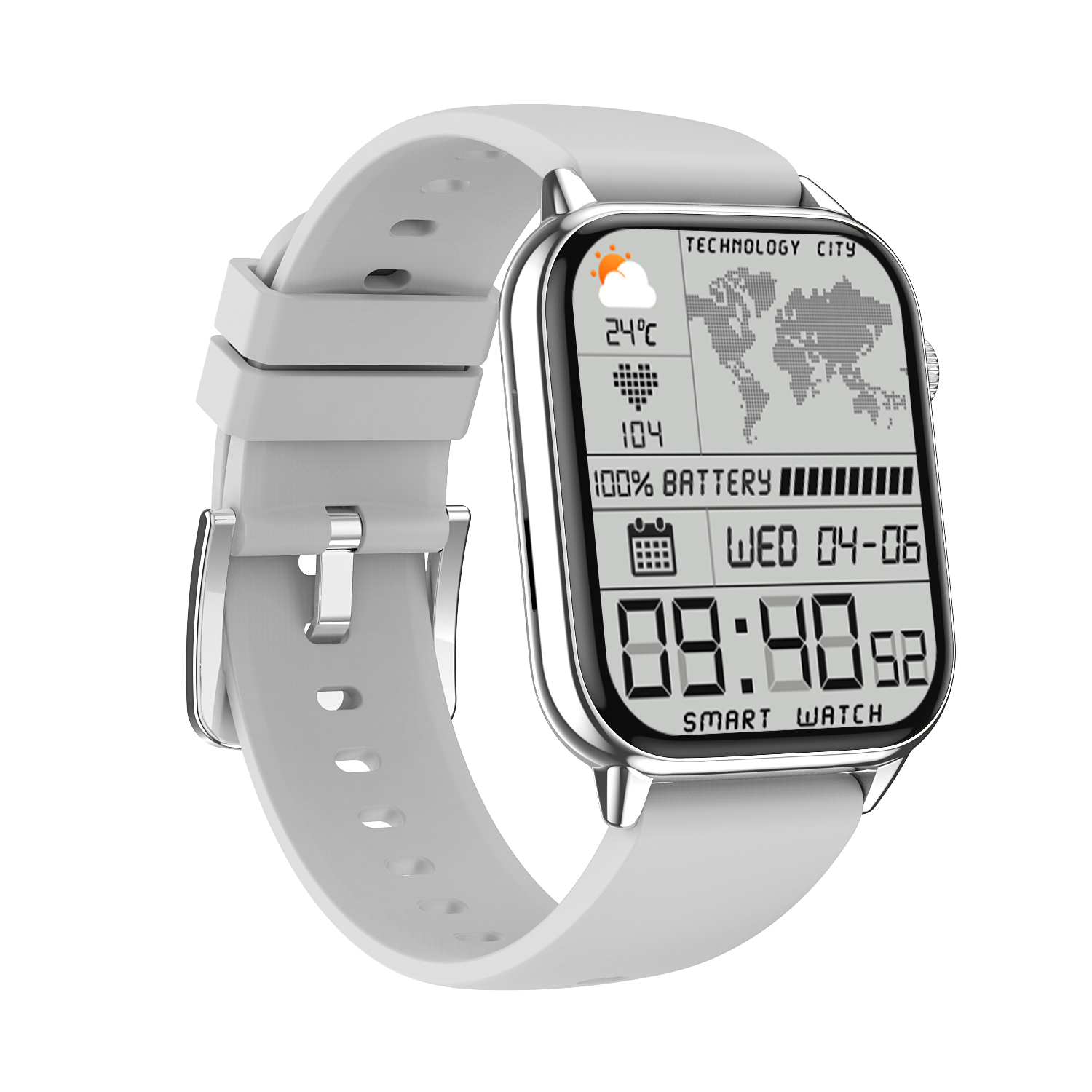

PW11
Chipset：Realtek RTL8762DK
Compatible system：Android 5.0 and above; iOS 10.0 and above
Flash memory：RAM：192KB+ROM：256KB+128Mb Nor flash
Screen ：1.85 inch Color screen, 240*280 ALL TP--OGS
Waterproof level：IP68
APP： Topstep
Bluetooth ：BLE5.1
Bluetooth call chip： JL HN333
Acceleration sensor g-sensors： Silan Micro SC7A20
Heart rate：Silan Micro SC7R31
Capacity：210mAH，
Battery type：Polymer lithium battery
Charging method ：Wireless charging
Charging time：150,min
Battery life：7 days
| Color |
|
-
-
Details
-
Parameter
Product model PW11 Hardware parameters Solution provider APP Topstep Main control chip CPU Realtek RTL8762DK Compatible system Android 5.0 and above; iOS 10.0 and above Flash Memory RAM：192KB+ROM：256KB+128Mb Nor flash Screen type Color screen Screen size 1.85 inch Touch screen IC/type 240*280 Touch screen IC/type ALL TP--OGS Connection parameters Bluetooth calls JL HN333 Bluetooth BLUE5.1 WIFI None NFC Access card Sensor
Acceleration sensor gsensors SLW SC7A20 ECG
None Heart rate SLW SC7R31 GPS None Body temperature None Battery Battery type Polymer lithium battery Capacity 210mAH Charging mode Wireless charging App software functions sport Step count, calories, distance, movement pattern Health Blood pressure, heart rate, blood oxygen, sedentary reminder, sleep monitoring, automatic heart rate monitoring, etc. Smart reminder Incoming call, SMS, email, WeChat、QQ、Facebook、Twitter、WhatsApp、LinkedIn、Instagram、Messenger、Snapchat、Line、Kakao Talk、Viber、Skype、telegram other Lift the wrist to light the screen, alarm clock reminder, remote control to take photos, find the mobile phone, etc. Watch hardware features Motion data Distance, calories, steps, real-time heart rate, exercise duration Sport mode selection Walking/Running/Mountaineering/Cycling/Basketball/Swimming/Badminton/Football/Elliptical Machine/Yoga/Table Tennis/Rope Skipping/Tennis/Baseball/Rugby/Hula Hoop/Golf/Long Jump/Sit-ups/Volleyball other Time display, wrist lifting screen, incoming call reminder, SMS reminder, alarm clock reminder, remote control photography, mobile phone search, dial switching, brightness adjustment, language switching, two-dimensional code, stopwatch, weather, dialing, password lock, Alipay, music, system recovery factory settings, music control, vibration settings, wrist lifting duration settings, screen duration settings, mass dial, etc. Other parameters Waterproof rating
IP68 Charging duration 150,min Endurance 7days Standby power consumption
70uA minimum Charger specifications DC 5V Firmware language Firmware language of the product is optional (Chinese, English, Spanish, Portuguese, German, Italian, French, Russian, Japanese, Polish, Vietnamese, Korean, Arabic, Hebrew, Thai, Croatian, Turkish, Czech, Dutch, Indian, Malaysian, Finnish, Greek and Romanian). English is the default language from the factory APP Language English, Chinese Simplified, Chinese Traditional, German, French, Arabic, Czech, Greek, Spanish, Japanese, Persian, Italian, Korean, Dutch, Polish, Portuguese, Russian, Finnish, Swedish, Thai, Hungarian, Slovak, Croatian, Albanian, Turkish, Ukrainian
